تصارع tight project schedules, remote job sites, or rising concrete delivery costs? On many projects, delays in material supply and transportation inefficiencies can quickly slow down construction progress and increase overall expenses. A portable concrete batching plant helps solve these challenges by enabling on-site concrete production, improving scheduling flexibility and reducing reliance on external supply chains.
Main Types of Portable Concrete Batching Plants for Sale
Portable concrete batching plants are generally divided into three main series: the AJSY compact series, the AJZY drum-type series, and the AJY flexible capacity series. Understanding these types helps you quickly identify the right solution for different construction needs.
AJSY Series Compact Portable Concrete Plant for Sale
The AJSY series compact portable concrete plant is designed for small contractors and rural construction projects that need fast-deployment, and easy-to-operate on-site concrete production. It is widely used in rural housing, village road works, and small irrigation projects.
Compact Output for Small Projects
The system is designed for low to medium production demand, supporting small batch and frequent mixing operations. It is suitable for C15–C30 concrete used in rural housing foundations, road repairs, and small civil works, avoiding unnecessary investment in oversized equipment.
Lightweight & Easy Mobility
The plant is built on a compact integrated chassis that can be towed by a standard truck. With a lightweight structure (typically 3-8 طن)، يمكن operate on rural roads, narrow passages, and uneven sites, making it suitable for remote or scattered job locations.
Fast Setup with Integrated Design
All key systems—including mixer, batching unit, water tank, and control system—are pre-installed on one chassis. The plant can be installed and start production within a few hours after arrival, requiring only basic leveling and 1-2 مشغلين.
Low Investment & Simple Maintenance
The simplified structure reduces purchase cost and maintenance workload. Main wear parts such as mixing blades and liners are easy to replace on-site, making it suitable for small teams or independent contractors with limited technical support.
Simple Operation & Basic Automation
The system supports semi-automatic or basic PLC control, allowing operators to manage batching and mixing through an intuitive interface or remote controller. This reduces skill requirements and training time.
AJZY Drum Type Portable Batching Plant
The AJZY series drum type portable batching plant is designed for small construction teams that need low-cost, easy-to-operate, and highly mobile concrete production. It is widely used in rural housing, road repair, and small civil works.
Compact Mobile Design for Quick Deployment
النبات integrates the drum mixer, batching system, and control unit into a single trailer-mounted chassis. It can be transported by standard truck and installed on simple leveled ground (a slope of no more than 3°), starting operation within 1–3 hours.
Small Capacity for Basic Construction Needs
It is suitable for low-volume concrete production such as ج15–ج30 applications, including rural housing foundations and small infrastructure repairs. The drum system ensures stable mixing with lower energy consumption.
Simple Operation and Low Maintenance
The system uses manual or semi-automatic control, operators can typically learn the basic operation within 1 - 2 ساعة, with no specialized training required. Key wear parts such as blades and liners are easy to replace, reducing maintenance cost.
Suitable for Limited Construction Sites
With a compact footprint (around 100-300 مترًا مربعًا), it can be installed in narrow or rural sites such as yards, roadside areas, or farmland edges, reducing transportation distance and improving efficiency.
محطة خلط الخرسانة المحمولة من سلسلة AJY
Our AJY series is a portable concrete batching plant designed for fast deployment, stable on-site production, and flexible use across small to medium construction projects. The popular models are AJY60 و AJY90.
Highly Integrated Modular Design
This mobile batching plant integrates the mixer, batching system, and conveyor on a single movable chassis with a modular structure. It requires no complex foundation and can be quickly assembled or dismantled on site, reducing installation time to about 1-3 أيام compared to 3–4 weeks for stationary plants.
Strong Mobility for Flexible Deployment
Designed with a tire-mounted chassis, the plant can be easily transported by trailer and adapted to various road conditions, including construction roads and unpaved surfaces. This allows fast relocation between job sites and solves the limitation of fixed installation.
Flexible Capacity with Easy Operation
With a production range of 25–90 m³/h, it is suitable for small and medium-scale projects such as roads, bridges, housing, and repair works. The automated control system enables full batching, weighing, mixing, and discharging with high precision (aggregate ±2%, cement/water ±1%), allowing operators to quickly get started.
Low Site Requirement and Cost Efficiency
Only a leveled ground with a slope ≤3° is required for installation, with a compact footprint of about 300–500 مترًا مربعًا. The modular design also simplifies maintenance and reduces both installation and transportation costs compared to محطات الخلط الثابتة of similar capacity.
AJY vs AJSY vs AJZY: Quick Comparison
| عنصر المقارنة | سلسلة AJY | سلسلة AJSY | سلسلة AJZY |
|---|---|---|---|
| Mixer Type (Key Difference) | JS Twin-Shaft Concrete Mixer | JS Twin-Shaft Concrete Mixer | JZM Drum Concrete Mixer (self-falling type) |
| Maximum Concrete Grade | ج15–ج60 | ج15–ج30 | ج15–ج30 |
| الإنتاجية المقدرة | ما يصل إلى 90 متر مكعب / ساعة | 20–60 م³/ساعة | 40–60 م³/ساعة |
| الفوائد الرئيسية | High mixing efficiency, large discharge capacity, accurate batching, excellent stability for continuous production | Compact and lightweight structure, twin-shaft forced mixing, uniform mixing quality, stable discharge, easy relocation, low failure rate, and excellent cost performance | Extremely simple structure, very low failure rate, minimal maintenance requirements |
| خصائص المواد المناسبة | Flowable concrete, ready-mix concrete, and general engineering concrete | Flowable concrete, plastic concrete, and standard & medium-strength concrete for most small and medium construction projects | Low-strength plastic concrete, foundation layers, floor concrete, and general-purpose concrete |
| Site Requirement & Mobility | Requires larger site area (300–500 m²); mobile but more suitable for long-term projects | Compact footprint(about 200 m²), space-saving design, easy relocation, ideal for confined job sites | Site area (100–300 m²), highly adaptable to various environments, suitable for remote areas and temporary construction sites |
| Automation & Batching Accuracy | Advanced fully automatic PLC control system with ready-mix plant-level weighing accuracy | Adopting manual or semi-automatic control system | Basic automation with standard batching functions and moderate accuracy |
| تحديد المواقع السعر | Premium level; highest investment cost (commercial and large-scale engineering projects) | Mid-range, cost-effective solution (compact and versatile engineering model) | Entry-level and most economical option (budget-focused solution) |
| تطبيقات نموذجية | Municipal roads, bridges, high-rise buildings, commercial concrete production, and long-term large-volume construction projects | Small to medium municipal projects, residential construction, precast component production, confined job sites, and projects requiring frequent relocation | Rural roads, floor slabs, foundation backfilling, self-built houses, and low-grade concrete applications |
Knowing Specifications of Portable Batch Plants
| الموديل | آجي-60 | آجي-90 |
|---|---|---|
| الكفاءة الإنتاجية النظرية (م³/ساعة) | 60 | 90 |
| سعة تصريف الخلاط (لتر) | 1000 | 1500 |
| سعة تغذية الخلاط (لتر) | 1600 | 2400 |
| قدرة محرك الخلاط (كيلوواط) | 18.5 × 2 | 30 × 2 |
| ارتفاع التفريغ (م) | 4.1 | 4.1 |
| إجمالي سعة التخزين (م³) | 8 × 3 | 12 × 3 |
| فترة دورة العمل (ثانية) | 60 | 60 |
| أقصى حجم للجسيمات المجمعة (مم) | 80/100 | 80/100 |
| صومعة أسمنت (بالأطنان) (اختياري) | 100 × 1 | 100 × 2 |
| دقة نظام وزن المواد الإجمالية | ± 2٪ | ± 2٪ |
| دقة نظام وزن المسحوق | ± 1٪ | ± 1٪ |
| دقة نظام وزن الماء | ± 1٪ | ± 1٪ |
| دقة نظام الوزن الإضافي | ± 1٪ | ± 1٪ |
| قوة التثبيت (كيلوواط) | ≈100 | ≈140 |
| طريقة الجر | شبه مقطورة | شبه مقطورة |
| وضع التحكم | التحكم بالكمبيوتر | التحكم بالكمبيوتر |
| مزود الطاقة | 220V/415V/440V/380V, 50Hz/60Hz, three-phase | |
| الموديل | أجيه إس واي 20 | أجيه إس واي 40 | أجيه إس واي 60 |
|---|---|---|---|
| الإنتاجية النظرية (م³/ساعة) | 20 | 40 | 60 |
| حجم تصريف الخلاط (لتر) | 500 | 1000 | 1500 |
| حجم تغذية الخلاط (لتر) | 750 | 1500 | 2250 |
| قدرة الخلاط (كيلوواط) | 18.5 | 18.5 × 2 | 30 × 2 |
| ارتفاع التفريغ (م) | 4.1 | 4.1 | 4.1 |
| تكوين حاويات التجميع (العدد × حجم الحاوية الواحدة، م³) | 2 × 4.5 | 2 × 4.5 | 2 × 4.5 |
| زمن الدورة (ثانية) | 60 | 60 | 60 |
| أقصى حجم للجسيمات المجمعة (مم) | 60/80 | 60/80 | 60/80 |
| صومعة أسمنت (اختياري) | 1 × 100 | 1 × 100 | 1 × 100 |
| نظام الوزن الكلي | ± 2٪ | ± 2٪ | ± 2٪ |
| نظام وزن المسحوق | ± 1٪ | ± 1٪ | ± 1٪ |
| نظام وزن الماء | ± 1٪ | ± 1٪ | ± 1٪ |
| نظام الوزن الإضافي | ± 1٪ | ± 1٪ | ± 1٪ |
| القدرة المركبة (kw) | ≈50 | ≈70 | ≈100 |
| وضع التحكم | أزرار + شاشة لمس + جهاز تحكم عن بعد | ||
| مزود الطاقة | 220V/415V/440V/380V, 50Hz/60Hz, three-phase | ||
| معامل | الموديل | وحدة | AJZY-40 | AJZY-60 |
|---|---|---|---|---|
| كفاءة الإنتاج النظرية | متر مكعب في الساعة | 30-40 | 50-60 | |
| خلاط طبل | - كيلوواط | DFINEBT1000 | DFINEBT1500 | |
| قوة المحرك | kW | 7.5 × 2 | 11 × 2 | |
| وقت الخلط | ثان | 40 | 40 | |
| ارتفاع التفريغ | متر | 1.3 | 1.3 | |
| آلات الخلط | آلة الجرعات | -متر مكعب | PLD1200 | PLD1600 |
| قدرة هوبر | متر مكعب | 5 × 2/3 | 8 × 2/3 | |
| قوة المحرك | كيلووات | 4 × 2 | 4 × 3 | |
| المستشعرات | كيلوغرام | 2000 × 3 | 2000 × 3 | |
| أسطوانة | - | 100 × 250 | 100 × 250 | |
| حجم الحزام | ملليمتر | 10400×500×2؛ 4200Ã-500Ã-1 | 10400×500×2؛ 4200Ã-500Ã-1 |
|
| 9000Ã-600Ã-1 | 9000Ã-600Ã-1 | |||
| تغذية ارتفاع | ملليمتر | 3200 | 3200 | |
| نظام وزن الأسمنت | يزن الدقة | - | ± 1٪ | ± 1٪ |
| نظام وزن الماء | دقة الوزن | - | ± 1٪ | ± 1٪ |
| قوة المضخة | كيلووات | 3 | 3 | |
| نظام الوزن الإضافي | دقة الوزن | - | ± 1٪ | ± 1٪ |
| قوة المضخة المضافة | كيلووات | 1.1 | 1.1 | |
| الهيكل | (المعدات) الحجم | ملليمتر | 8410Ã-2000Ã-780 | 11100Ã-2000Ã-780 |
| حجم الإطارات | ملليمتر | 1000 | 1000 | |
| أنظمة التحكم | مكونات الكترونية | - | تشنغ تاي | تشنغ تاي |
| نظام التحكم | - | نظام التحكم شبه الآلي PLY1000 | نظام التحكم شبه الآلي PLY1000 |
Real-World Portable Concrete Batching Plant Projects and Applications
Every construction project comes with different constraints such as remote access, limited space, and strict scheduling requirements. The following real-world applications show how portable concrete batching plants are deployed in practical conditions to ensure stable on-site production and uninterrupted project progress.
AJSY-40 Compact Portable Batching Plant for Airport Access Road Construction in Papua, Indonesia
Challenge – Delivering Concrete Production to a Remote Highland Site
For an airport access road project in Wamena, Papua, Indonesia, the customer faced a major التحدي اللوجستي. The remote mountainous location had no local ready-mix concrete supply, and transporting fresh concrete over long distances was impractical. In addition, equipment delivery was constrained because major components had to be transported by air.
Solution – Compact Plant with Rapid Deployment and On-Site Technical Support
To meet these requirements, our AJSY-40 مصنع خلط مدمج was selected for its integrated design, convenient transportation, and fast installation. After commissioning, on-site technical support was provided to assist with equipment setup, operator training, and production optimization, helping the plant adapt to local conditions such as unstable power supply and heavy dust.
Result – Reliable Concrete Supply for Continuous Road Construction
With on-site batching in place, the project established a stable and independent concrete production system despite the remote location. The compact plant ensured a continuous supply of fresh concrete for airport road construction, reduced dependence on external logistics, improved batching efficiency through technical support, and helped keep the project progressing on schedule under challenging site conditions.

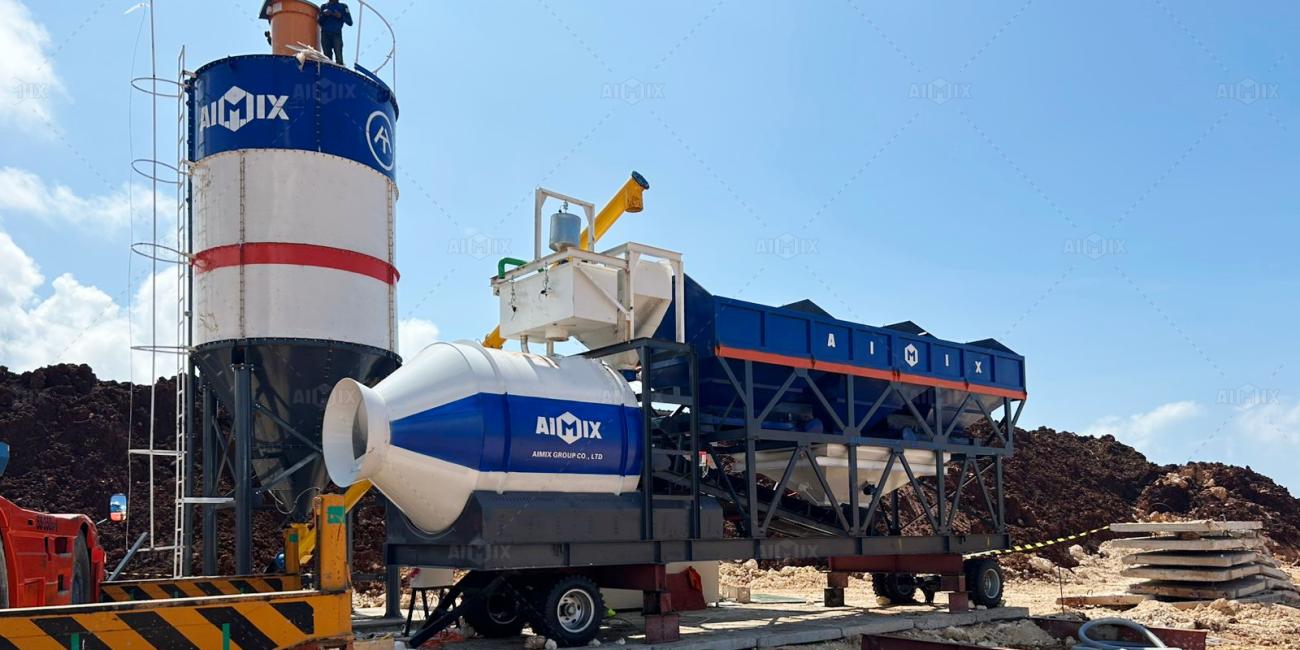

AJZY-50 Drum Type Portable Batch Plant for Warehouse Construction in Bali, Indonesia
Challenge – Building an On-Site Concrete System from Scratch
For a warehouse construction project in Bali, Indonesia, the client needed a reliable on-site concrete supply but had no existing batching equipment, supporting machinery, or operational experience. Relying entirely on external concrete deliveries would have limited construction flexibility and increased scheduling uncertainty.
Solution – Complete On-Site Concrete Production Package
To help the client start production quickly, an نوع الأسطوانة AJZY-50 portable batching plant was supplied together with a self-loading concrete mixer, wheel loader, and excavator, creating a complete on-site concrete production system. This integrated solution enabled the client to batch, mix, and deliver fresh concrete directly at the project site.
Result – Independent Production and More Flexible Construction
With the complete equipment package in place, the customer established an independent concrete supply system without relying on outside ready-mix providers. On-site production improved scheduling flexibility, supported continuous warehouse construction, and gave the project team greater control over daily operations and concrete availability.
AJY-60 Portable Concrete Batch Plant for Multi-Site Housing Development in Ethiopia
Challenge – Supplying Concrete Across Multiple Construction Zones
The housing development project was carried out in several building zones that progressed at different stages. Using a stationary batching plant would have required long material transport distances or multiple production setups, increasing costs and reducing operational efficiency.
Solution – Flexible Relocation with a Trailer-Mounted Design
To support changing construction demands, our AJY-60 portable concrete plant equipped with a twin-shaft mixer was selected. Its trailer-mounted modular design allowed the plant to be relocated quickly between work areas, enabling fresh concrete production close to each active construction zone.
Result – Higher Equipment Utilization and More Efficient Project Execution
By moving the same plant as construction progressed, the customer maintained a reliable on-site concrete supply without investing in multiple fixed installations. The flexible deployment reduced unnecessary material movement, minimized equipment idle time, and helped keep housing construction on schedule across different work areas.
How Portable Concrete Plants Support Rural and Remote Construction Sites
For contractors working in rural areas or remote job sites, obtaining a steady supply of fresh concrete is often a bigger challenge than the construction work itself. Long transportation distances, limited local ready-mix capacity, and changing project schedules can all increase costs and delay progress. A portable concrete plant addresses these issues by bringing concrete production directly to the site, giving contractors and construction teams greater control over quality, timing, and logistics.
Stay Close to the Pouring Area
- As the project advances, the plant can be relocated to remain close to active work zones, reducing internal transportation time.
- Producing concrete near the point of placement helps minimize slump loss and lowers the risk of quality changes during long-distance delivery.
- Contractors can schedule pours based on actual site progress instead of waiting for ready-mix trucks to arrive.
Fit Challenging and Space-Limited Sites
- Portable concrete batch plants are well suited for mountain roads, small bridge projects, riverbank protection works, islands, mining camps, and other locations where permanent batching equipment are impractical.
- Their compact layout allows installation on prepared ground even when available space is limited or irregular.
- This flexibility makes it easier to establish concrete production in places where conventional plants would be difficult or costly to build.
Produce Only What the Project Needs
- Daily output can be adjusted to match actual pouring schedules rather than maintaining unnecessary high production.
- For projects with multiple small pours, companies can batch concrete in stages and avoid disposing of unused material.
- This approach helps reduce cement and aggregate waste while improving overall material utilization.
Lower Overall Project Costs
- On-site production reduces the expense of transporting ready-mix concrete over long distances.
- Many portable batch plants require only a leveled and compacted surface, avoiding the cost and time associated with constructing permanent foundations.
- After one project is completed, the equipment can be relocated and reused on the next site, improving long-term return on investment.
Operate Efficiently with Small Teams
- Automated batching and control systems simplify daily operation, allowing a small team to manage production efficiently.
- This is particularly valuable in remote regions where experienced plant operators may be difficult to hire.
- Straightforward maintenance and accessible components also help reduce downtime during continuous operation.
Keep Construction Schedules on Track
- Producing concrete on demand reduces reliance on supplier delivery times and external logistics.
- Project teams can respond more quickly to weather changes, revised work plans, or unexpected site conditions without interrupting concrete supply.
- The result is better schedule control and a more reliable workflow throughout the construction process.
Making the Right Choice: Portable Batching Plant Selection for Long-Term Performance
Selecting a portable batching plant is not only about comparing specifications, but about ensuring the equipment aligns with real construction conditions. A well-matched plant helps maintain stable production, predictable operating costs, and reliable performance across different job sites throughout its service life.
Match Plant Capacity with Real Project Demand
- Capacity selection should be based on actual daily pouring requirements rather than maximum output figures. Contractors and project teams need to consider construction pace, project duration, and peak demand periods.
- A properly sized plant helps avoid both underutilization and production bottlenecks, ensuring smoother on-site coordination and more efficient material usage.
Evaluate Site Conditions and Mobility Requirements
- Working environments can vary significantly depending on the project type. For example, rural road construction, hillside housing projects, riverbank reinforcement, or island infrastructure often involve uneven terrain, narrow access routes, or temporary working platforms. In these cases, equipment must be easy to reposition and capable of operating on compacted ground without extensive civil preparation.
- اختيار مصنع الخلط أن matches real site constraints helps reduce installation delays and avoids unnecessary foundation work or repeated relocation downtime.
Focus on Stability and Control System Reliability
- عملية مستقرة directly determines concrete consistency across different production batches. Reliable batching systems ensure accurate weighing of aggregates, cement, water, and additives, which is critical for maintaining uniform strength and workability. This becomes especially important in structural projects such as bridges, high-rise housing, and infrastructure foundations where material consistency directly affects safety and durability.
- متقدم أنظمة التحكم القائمة على PLC help maintain precise batching logic and reduce human error during continuous operation.
Consider Total Cost of Ownership (Not Just Purchase Price)
- استخدم التكلفة الحقيقية of a portable batching plant is determined by its full lifecycle performance rather than the initial purchase price alone. Factors such as fuel efficiency, maintenance frequency, spare parts availability, and relocation efficiency all contribute to long-term operating cost. For example, designs with foundation-free support systems and quick-connect electrical and piping interfaces can significantly reduce setup time and transfer downtime between job sites.
- Evaluating total cost of ownership (TCO) allows companies to better understand long-term profitability instead of focusing only on upfront investment.
Portable vs Stationary Concrete Batching Plants: Key Differences
 |
 |
 |
|---|
| الجانب الرئيسي | محطة خلط الخرسانة المحمولة | مصنع خلط الخرسانة الثابتة |
|---|---|---|
| التنقل | Designed for frequent relocation; can be moved between multiple job sites using standard trucks | Fixed installation; remains in one location for long-term production |
| وقت التثبيت | 1–3 days with minimal foundation | 2–4 weeks or more for installation and commissioning after civil foundation is ready |
| قدرة الإنتاج | 25–90 m³/h, optimized for flexible small to medium projects | 60–240 m³/h, designed for continuous large-scale production |
| متطلبات المساحة | Compact (100–400 m²), suitable for constrained or remote sites | Large (500–1200 m²), requires dedicated industrial land |
| الاستثمار الأولي | Lower upfront cost ($50,000–$150,000+), reduced civil work expense | Higher investment ($150,000–$500,000+), but better for long-term fixed production |
| المرونة التشغيلية | Can be relocated and reused across multiple projects, reducing idle equipment time | Best suited for long-term, single-site operation with stable demand |
| Concrete Application | Ideal for small to medium projects, rural roads, housing, and remote infrastructure | Suitable for highways, commercial concrete supply, and large infrastructure works |
In short, portable concrete batch plants are best for mobile, fast-moving projects that require quick setup and frequent relocation, while stationary plants are more suitable for long-term sites with stable, high-volume production needs. The decision depends on whether your project prioritizes flexibility or continuous output capacity.
4 Essential Operation Tips for Portable Concrete Batch Plant Performance
To ensure stable performance and consistent concrete quality, a portable concrete batch plant must be operated with proper site setup, routine maintenance, trained operators, and continuous quality control. These practices help reduce downtime, prevent failures, and maintain stable production across different job sites.
01Ensure Proper Site Preparation Before Installation
Before installation, the ground should be compacted to at least 90–95% density, leveled within ±2 cm tolerance, and equipped with proper drainage to prevent water accumulation after rainfall.
The plant should be placed on a hard, stable working base to avoid chassis deformation during operation. Wheel loaders and concrete trucks should have a minimum 6–8 meter access lanefor smooth material handling.
A properly prepared site ensures accurate weighing, stable mixing, and uninterrupted loading operations.
02Follow Routine Mechanical and System Maintenance
Key components such as mixer blades, conveyor belts, pneumatic systems, and weighing sensors should be inspected based on operating hours:
- Mixer blades: check every 50–80 working hours.
- Bearings and moving parts: lubricate weekly.
- Weighing sensors: calibrate every 1–2 months.
- Air compressor system: drain moisture daily.
For portable plants operating in dusty or high-vibration environments, filter cleaning and bolt tightening should be prioritized after relocation. These steps help maintain batching accuracy and prevent sudden production shutdowns.
03Operate with Proper Training and System Familiarity
Operators should be able to correctly handle:
- Material ratio input on the control system.
- Moisture adjustment for aggregates.
- Manual override and emergency stop functions.
- Daily calibration check before production starts.
In مواقع البناء النائية, it is recommended that at least one backup operator is trained to avoid downtime caused by personnel absence.
Proper operation ensures consistent batching accuracy and reduces material waste caused by incorrect settings.
04Maintain Consistent Quality Monitoring During Production
Concrete quality should be checked every 30–50 m³ of production or at least every major pour.
تشمل نقاط التحكم الرئيسية ما يلي:
- اختبار الانحدار: ensure consistency within project requirement (e.g., 75–120 mm for general construction).
- Aggregate moisture: adjust water ratio when variation exceeds ±2%.
- وقت الخلط: maintain 30–60 seconds per batch depending on mix design.
- Temperature monitoring in hot climates to prevent premature setting.
Because portable plants operate under changing site conditions, real-time adjustment of water and mix ratio is essential to maintain stable output quality.
Global Delivery and Local Support Assurance
When investing in a portable concrete batching plant, delivery reliability and local technical support are just as important as the equipment itself. For international projects, smooth transportation, proper installation, and responsive after-sales service are key to ensuring uninterrupted on-site production and reducing project risks.
Reliable Global Transportation and Delivery Planning
- Portable concrete mixing plants are designed with transport efficiency in mind, allowing key modules to be packed into standard shipping containers or flat racks for international delivery. This reduces the complexity of cross-border logistics, minimizes the need for oversized cargo permits, and lowers transportation uncertainty.
- Proper loading design also helps ensure that critical components such as mixers, conveyors, and control systems arrive in stable condition, ready for installation.
Fast On-Site Installation and Commissioning Support
- Once the equipment arrives at the job site, installation speed directly impacts project schedules. Modular structures, pre-wired electrical systems, and quick-connect pipelines allow the plant to be assembled efficiently with minimal civil preparation.
- In most cases, commissioning can be completed within a short timeframe, helping companies start production quickly and avoid long idle periods between equipment arrival and concrete output.
Spare Parts Availability and Maintenance Continuity
- Stable long-term operation depends on the availability of critical spare parts such as mixer blades, liners, sensors, and control components. A well-structured supply system ensures that replacement parts can be sourced without long delays, reducing the risk of extended downtime.
- This is particularly important for remote or overseas projects where immediate local procurement is often limited.
Technical Support for Continuous Operation
- Remote technical guidance and on-demand troubleshooting support help operators resolve issues quickly during daily operation. Through digital monitoring systems and structured maintenance guidance, many operational problems can be diagnosed without waiting for on-site intervention.
- This support structure helps maintain stable production, especially in regions with limited access to experienced technicians.
FAQs About Portable Concrete Batching Plants
What is a portable concrete batching plant?
A portable concrete batching plant is a mobile system that produces concrete directly on or near construction sites. It reduces dependence on ready-mix suppliers, helping construction teams save transportation costs and improve on-site production efficiency.
Do portable concrete batch plants require a foundation?
Most portable plants do not require a permanent foundation. They can be installed on compacted and leveled ground, which significantly reduces civil construction work, setup time, and site preparation costs.
How long does it take to install a portable batching plant?
عادة ما يستغرق التثبيت 1 إلى أيام 3 depending on the model and site conditions. Modular design and pre-wired systems allow fast setup compared to stationary plants, which may require several weeks of installation and commissioning.
Is it easy to move a portable concrete plant between sites?
Yes. Portable concrete plants are designed for frequent relocation using trucks or trailers. Modular components and integrated chassis structures allow the equipment to be dismantled and moved efficiently between multiple job sites with minimal downtime.
What type of projects are best suited for portable plants?
They are ideal for projects that require flexible or temporary concrete production, including rural infrastructure, road maintenance, small bridges, residential developments, and remote construction sites with limited access to ready-mix suppliers.
Can a portable batching plant produce the same quality as a stationary plant?
Yes. Portable batching plants use similar mixing technologies like twin-shaft mixer. With automated control systems, they can achieve consistent batching accuracy and concrete quality that meets engineering standards for structural applications.
What factors should I consider before buying a portable batch plant?
وتشمل العوامل الرئيسية ما يلي: project scale, required mobility, automation level, site conditions, and long-term operating costs. Transportation efficiency, maintenance accessibility, and spare parts availability also play an important role in ensuring stable long-term performance.
Investing in a portable concrete batching plant is a practical long-term solution for projects that require flexibility, fast deployment, and stable on-site production. It helps reduce reliance on external suppliers, minimize downtime during site relocation, and improve control over project schedules and costs. Whether you are looking for a reliable equipment supplier or exploring long-term business cooperation opportunities, AIMIX is committed to building mutually beneficial partnerships that support sustainable growth and project success.
